Optical Barriers
Optical Barriers

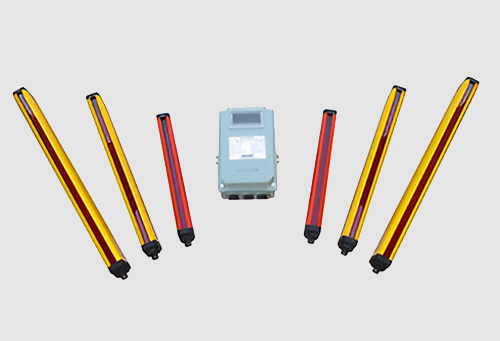

Optical Barrier is a reliable safety light curtain that uses infrared beams to detect any intrusion near hazardous machines. When the beam is broken, it instantly stops the machine to prevent accidents. Designed for industrial environments, it offers fast response, easy setup, and durable protection for operators working around conveyors, presses, and automated systems.
Highlighting Features:
- Ensures operator safety by stopping machines when any object or person enters danger zones.
- Works on infrared beam sensing between transmitter and receiver.
- Fast response time – less than 20 ms for quick machine shutdown.
- Rugged IP65 enclosure made of aluminium for industrial use.
- Easy installation with adjustable mounting brackets.
- Self-diagnostic system ensures reliable and fail-safe operation.
- Available in various beam pitches (15mm / 30mm / 50mm) and heights (150mm to 1800mm).
- Operating range: up to 5 meters.
- LED indicators – Green for Power ON, Red for Beam Interrupted.
- Complies with IEC 61496 and ISO 13849 safety standards.
